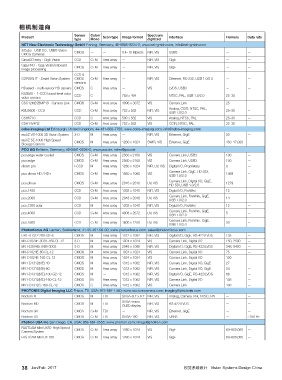

Page 40 - VSDC_JanFeb2017_eMag

相机制造商

Sensor Color/ Spectrum
Product Scan type Image format Interface Frame/s Data rate
type Mono digitized
NET New Electronic Technology GmbH Finning, Germany; 49-8806-9234-0; www.net-gmbh.com; info@net-gmbh.com
3iCube - USB 3.0 , USB3 Vision CMOS — — 0.4–10 Mpixels NIR, VIS USB3 — —
CMOS Cameras
GimaGO easy - GigE Vision CCD C+M Area array — NIR, VIS GigE — —
GigEPRO - GigE Vision/onboard CMOS C+M Area array — NIR, VIS GigE — —
image processing
CCD &
CORSIGHT - Smart Vision System CMOS C+M Area array — NIR, VIS Ethernet, RS-232, USB 1.0/2.0 — —
versions
HDselect - multi-sensor HD camera CMOS C Area array — VIS LVDS, USB3 — —
KS5600 - 1-CCD board-level color CCD C — 768 x 494 — NTSC, PAL, USB 1.0/2.0 25–30 —
video camera
CSC12M25BMP19 - Camera Link CMOS C+M Area array 4096 x 3072 VIS Camera Link 25 —
Analog, CCIR, NTSC, PAL,
KSU5600 - CCU CCD C+M Area array 752 x 582 NIR, VIS 25–30 —
USB 1.0/2.0
CSH6710 CCD C Area array 500 x 582 VIS Analog, NTSC, PAL 25–30 —
CSH14V4R2 CCD C+M Area array 752 x 582 VIS CCIR, NTSC, PAL 25–30 —
odos imaging Ltd Edinburgh, United Kingdom; 44-131-650-7756; www.odos-imaging.com; info@odos-imaging.com
real.iZ VS-1000 3D Vision System 3-D M Area array — NIR, VIS Ethernet, GigE 50 —
real.iZ SE-1000 High Speed CMOS M Area array 1280 x 1024 SWIR, VIS Ethernet, GigE 450–17,000 —
Storage Camera
PCO AG Kelheim, Germany; 49-9441-2005-0; www.pco.de; sales@pco.de
pco.edge water cooled CMOS C+M Area array 2560 x 2160 VIS Camera Link, USB3 100 —
pco.edge CMOS C+M Area array 2560 x 2160 VIS Camera Link, USB3 100 —
dicam pro I-CCD M Area array 1280 x 1024 NIR, UV, VIS Digital I/O, Proprietary 8 —
Camera Link, GigE, HD-SDI,
pco.dimax HD / HD+ CMOS C+M Area array 1920 x 1080 VIS 1469 —
USB 1.0/2.0
Camera Link, Digital I/O, GigE,
pco.dimax CMOS C+M Area array 2016 x 2016 UV, VIS 1279 —
HD-SDI, USB 1.0/2.0
pco.1400 CCD C+M Area array 1392 x 1040 NIR, VIS Digital I/O, FireWire 12 —
Camera Link, FireWire, GigE,
pco.2000 CCD C+M Area array 2048 x 2048 UV, VIS 14 —
USB 1.0/2.0
pco.1300 solar CCD M Area array 1392 x 1040 NIR, VIS Digital I/O, FireWire 12 —
Camera Link, FireWire, GigE,
pco.4000 CCD C+M Area array 4008 x 2672 UV, VIS 5 —
USB 1.0/2.0
Camera Link, FireWire, GigE,
pco.1600 CCD C+M Area array 1600 x 1200 UV, VIS 30 —
USB 1.0/2.0
Photonfocus AG Lachen, Switzerland; 41-55-451-00-00; www.photonfocus.com; sales@photonfocus.com
DR1-D1312-200-G2-8 CMOS M Area array 1312 x 1082 NIR, VIS Digital I/O, GigE, RS-422/LVDS 135 —
MV-D1024E-3D01-160-CL-12 3-D M Area array 1024 x 1024 VIS Camera Link, Digital I/O 150, 2500 —
MV1-D2048x1088-3D03 3-D M Area array 2048 x 1088 NIR, VIS Digital I/O, GigE, RS-422/LVDS 348, 8450 —
MV-D1024E-80-CL-12 CMOS M Area array 1024 x 1024 VIS Camera Link, Digital I/O 75 —
MV-D1024E-160-CL-12 CMOS M Area array 1024 x 1024 VIS Camera Link, Digital I/O 150 —
MV1-D1312(I/IE)-40 CMOS M Area array 1312 x 1082 NIR, VIS Camera Link, Digital I/O, GigE 27 —
MV1-D1312(I/IE)-80 CMOS M Area array 1312 x 1082 NIR, VIS Camera Link, Digital I/O, GigE 54 —
MV1-D1312(I/IE)-100-G2-12 CMOS M — 1312 x 1082 NIR, VIS Digital I/O, GigE, RS-422/LVDS 68 —
MV1-D1312(I/IE)-160-CL-12 CMOS M Area array 1312 x 1082 NIR, VIS Camera Link, Digital I/O 108 —
MV1-D1312C-160-CL-12 CMOS C Area array 1312 x 1082 VIS Camera Link 108 —
PHOTONIS Digital Imaging LLC Frisco, TX, USA; 972-987-1460; www.nocturncamera.com; imaging@photonis.com
Nocturn XL CMOS M TDI SXGA–9.7 x 9.7 NIR, VIS Analog, Camera Link, NTSC, PAL — —
SXGA–micro
Nocturn MD CMOS M TDI NIR, VIS RS-422/LVDS — —
OLED display
Nocturn GV CMOS C+M TDI — NIR, VIS Ethernet, GigE — —
Nocturn U3 CMOS C+M TDI SXGA–100 NIR, VIS USB3 — ≤100 Hz
Photron USA Inc San Diego, CA, USA; 858-684-3555; www.photron.com; image@photron.com
FASTCAM Mini UX50 High Speed CMOS C+M Area array 1280 x 1024 VIS GigE 60–800,000 —
Camera System
FASTCAM Mini UX 100 CMOS C+M Area array 1280 x 1024 VIS GigE 60–800,000 —

38 Jan/Feb 2017 视觉系统设计 Vision Systems Design China
